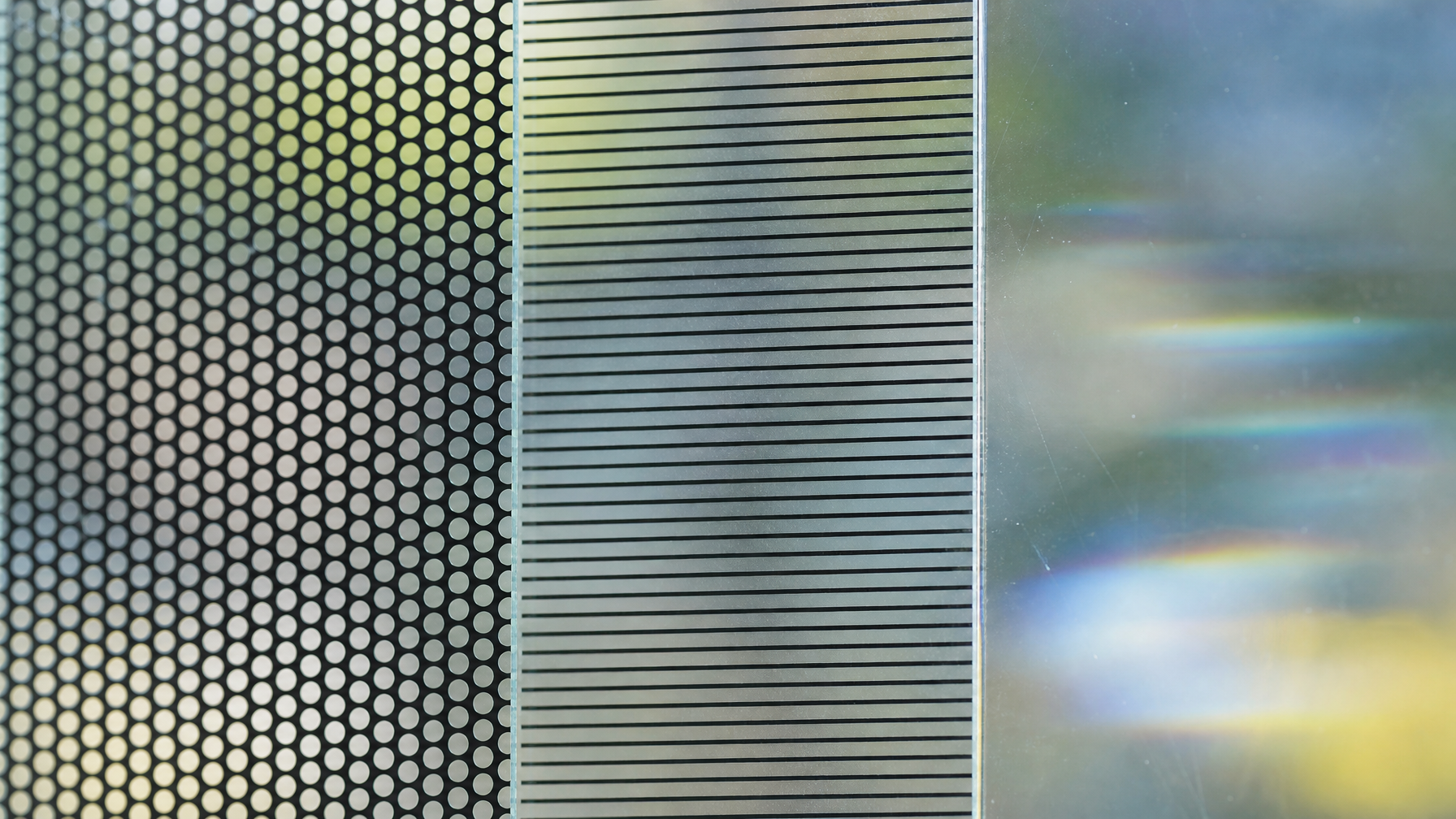

Bird safe window film comes in three main pattern types: dot/fritting patterns, line patterns, and UV-reflective films. All three can reduce bird collisions when they meet CSA A460 spacing requirements and are installed on the exterior glass surface. The right choice depends on your building’s aesthetic requirements, glass type, sun exposure, and whether visibility through the glass is a priority. Here’s how each type performs.
Dot and Fritting Patterns
Dot patterns, also called fritting, apply a regular grid of small dots or squares to the glass surface. This is the most common bird safe film pattern and the most straightforward to specify against CSA A460 requirements: dots must be spaced no more than 5 cm apart horizontally and vertically to provide complete coverage.
Effectiveness: High, when spacing meets CSA A460. Field tests show 70–90%+ collision reduction for properly spaced dot patterns.
Visibility impact: Minimal to moderate. Small dots (2–4mm diameter) at 5cm spacing are visible as a subtle texture from the exterior but don’t significantly impair interior views. Larger dots at wider spacing look cleaner but may leave gaps that reduce effectiveness.
Best for: Office buildings, residential picture windows, strata balcony glass, and any application where a clean, subtle pattern is preferred. Dot patterns also work well combined with other film properties (solar control, UV rejection) since the base film can carry these functions while the dot pattern provides bird deterrence.
What to avoid: Pre-packaged dot decal sets sold in retail stores. These typically space markers 10–15 cm apart, well outside CSA A460 requirements, and provide minimal collision reduction despite appearing to cover the glass.
Line Patterns (Horizontal and Vertical)
Line patterns apply parallel stripes, horizontal or vertical, across the glass surface. The CSA A460 spacing requirement for lines is 5 cm between horizontal lines or 10 cm between vertical lines (vertical lines can be spaced further apart because birds are less likely to attempt flying between them).
Effectiveness: Comparable to dot patterns when properly spaced. American Bird Conservancy testing shows strong collision reduction for line patterns meeting spacing standards.
Visibility impact: More visible than dot patterns from the exterior. Horizontal lines create a more pronounced visual texture that some building owners find aesthetically limiting. Vertical lines are less obtrusive and are a common choice for commercial facades where a contemporary architectural look is maintained.

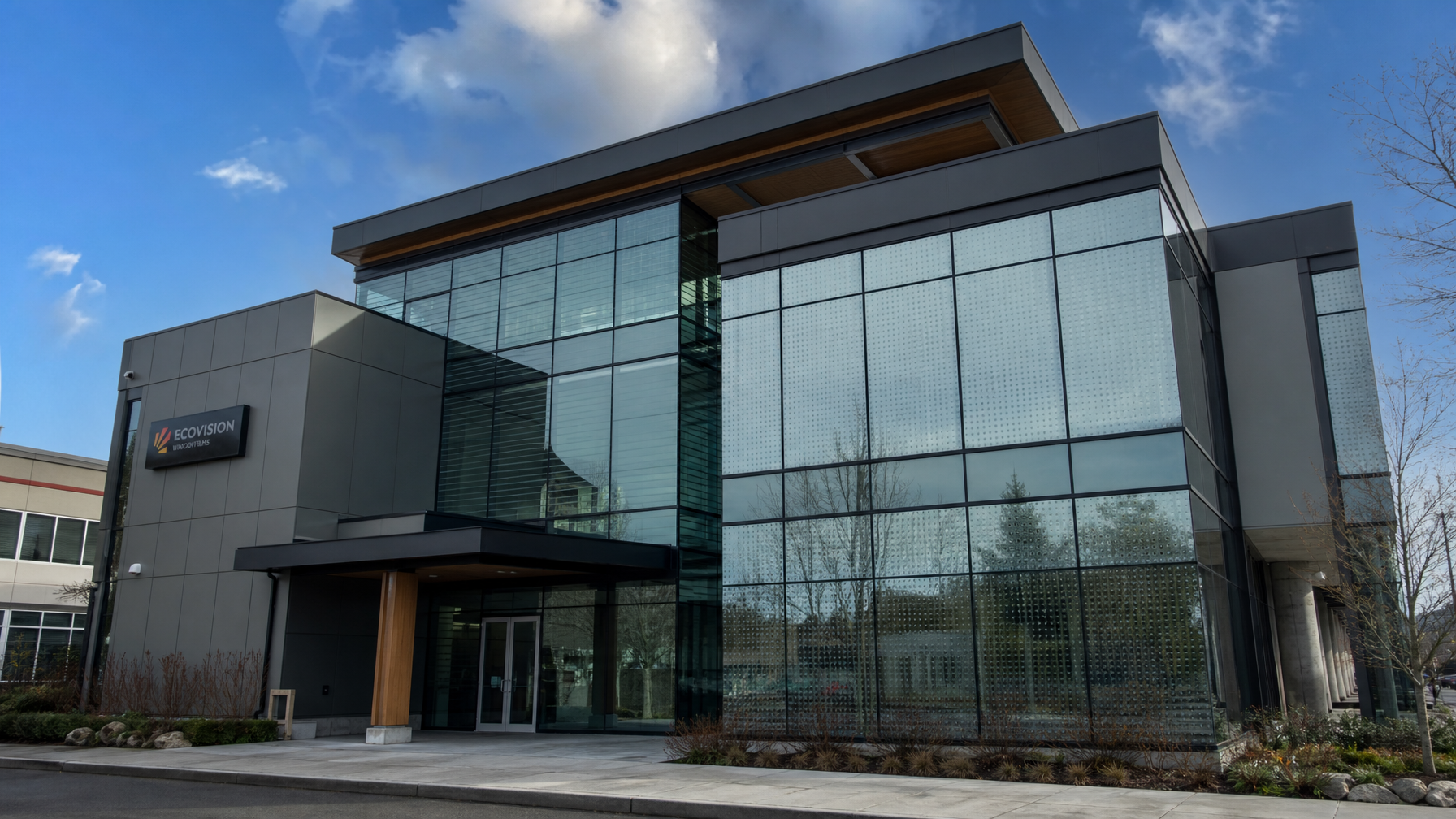

Best for: Commercial and institutional buildings where a more structured, architectural pattern is preferred. Vertical line patterns work particularly well on curtain wall systems where the lines can align with structural mullions for a cohesive visual result.
UV-Reflective Films
UV-reflective films use patterns or coatings invisible to humans but visible to birds, which can see into the ultraviolet spectrum. From the human perspective, the glass appears completely clear. From a bird’s perspective, the UV pattern creates a visible signal indicating a barrier.
Effectiveness: Strong in direct sunlight. In controlled studies, UV films perform well when solar UV intensity is high. Effectiveness decreases on overcast days, north-facing windows, and shaded facades, conditions common in BC, particularly during fall and winter migration periods.
Visibility impact: Virtually none for humans. This is the primary advantage, the glass retains full transparency and appearance while providing deterrence.
Best for: High-end residential and hospitality applications where view preservation is paramount, and south- or west-facing glass with consistent direct sun exposure. Less suitable as a primary solution for north-facing or heavily shaded commercial glass in BC’s climate.
Important note: UV films should be specified with caution in BC’s overcast seasons. A building that relies solely on UV film for bird deterrence may have reduced protection during the fall migration period (August–October) when cloud cover is frequent. Combining UV film with a visible pattern provides more reliable year-round performance.
Which Pattern Is Right for Your Building?
| Pattern Type | Effectiveness | Visibility Impact | Best Use Case |
|---|---|---|---|
| Dot / Fritting | High (70–90%+) | Minimal | Residential, office, strata |
| Horizontal Lines | High | Moderate | Institutional, healthcare |
| Vertical Lines | High | Low–Moderate | Commercial curtain wall |
| UV-Reflective | Medium–High (sun-dependent) | None | Luxury residential, south-facing glass |
At Ecovision Window Films, we assess your specific glass orientation, building type, and aesthetic requirements before recommending a pattern. Not every building needs the same solution. Call (236) 862-0052 for a free consultation.
