Vancouver building owners and property managers frequently ask how clear film can stop flying glass during storms, seismic events, or forced entry attempts. Anti-shatter window film works by bonding heavy-duty, high-tensile polyester layers to glass using aggressive pressure-sensitive adhesives. When glass strikes or shatters under impact, Ecovision Window Films installs LLumar and Vista security films that hold the broken fragments securely in place within the frame, preventing dangerous flying shards and delaying forced entry for property owners across Vancouver and the Lower Mainland.
What Is Anti-Shatter Window Film and How Does It Function?

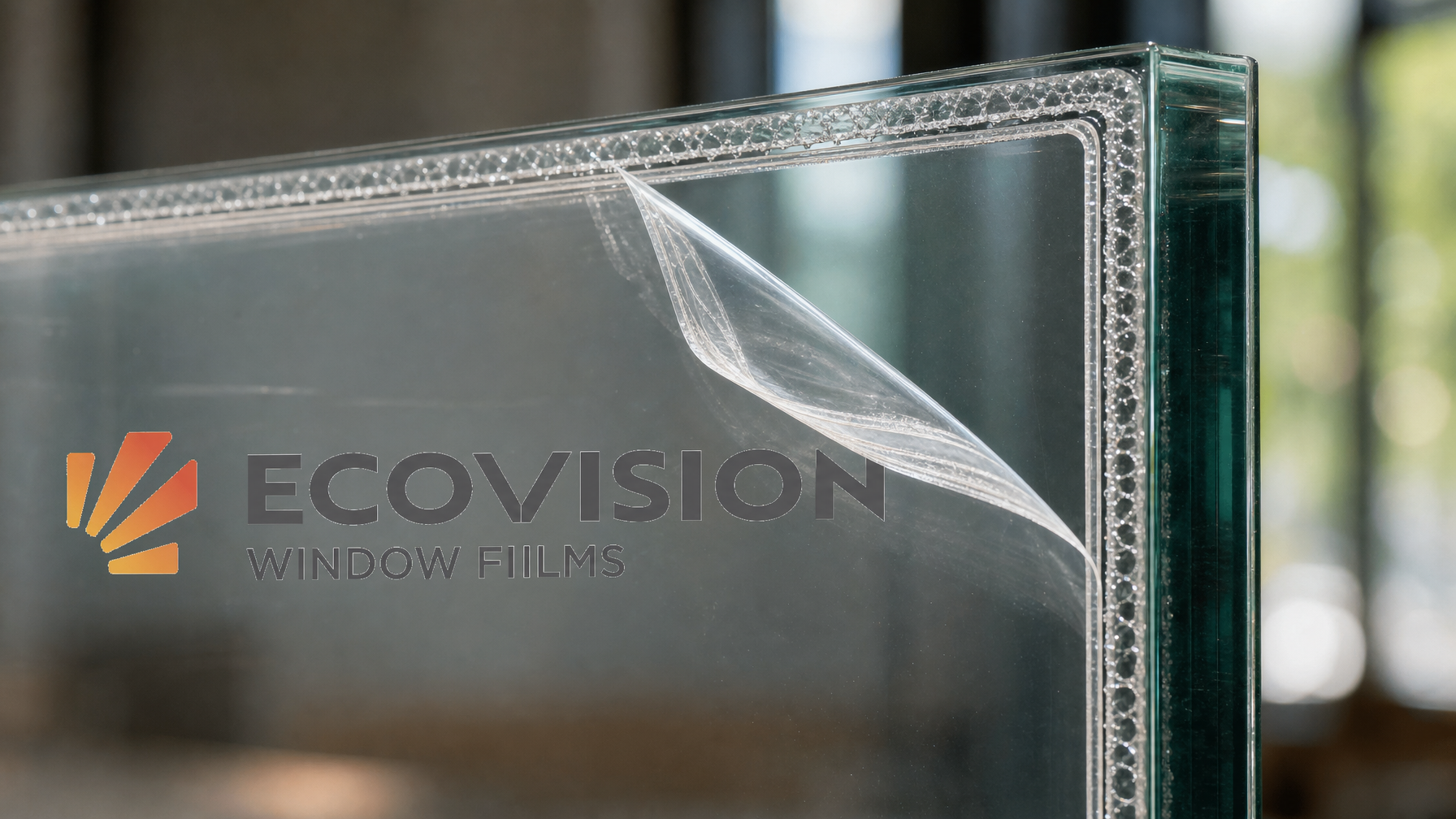

Anti-shatter window film, often referred to as safety film or security window film, is a multi-layer micro-thin polyester film applied directly to the interior surface of existing architectural glass. The primary engineering goal is fragment retention: keeping shattered glass attached to the film membrane rather than flying into occupied rooms.
When un-filmed annealed or tempered glass breaks, sharp shards dislodge immediately under pressure, causing up to 80% of storm and blast-related injuries. With an anti-shatter film layer bonded by cross-linked acrylic adhesive, the glass fractures into spiderweb patterns but remains held within the window frame. On commercial sites like Bentall 4 in downtown Vancouver, this fragment retention protects occupants and prevents sudden interior depressurization.
How Does Anti-Shatter Window Film Differ From Standard Window Film?
Standard solar control film measures 1 to 2 mils in thickness (0.025 to 0.05 mm) and is designed primarily for heat rejection and UV blocking. In contrast, anti-shatter safety film ranges from 4 to 14 mils (0.10 to 0.35 mm) or thicker, incorporating heavy-gauge polyester films laminated together with high-shear mounting adhesives.
While standard tint tears easily upon impact, anti-shatter security film exhibits extraordinary puncture resistance and break-strength ratings up to 250 lbs per inch of width. Property owners often compare safety glazing film vs shatter resistant film to determine if entry-point glass needs 7-mil or heavy 12-mil protection.
What Impact Standards Does Anti-Shatter Safety Film Meet in BC?
Professional anti-shatter film installations in British Columbia are tested and certified against rigorous North American impact and safety standards:
- ANSI Z97.1 & CPSC 16 CFR 1201: Architectural safety glazing impact standards for human impact (Category I and II).
- ASTM E1886 / E1996: Large missile impact and cyclic pressure testing for windborne debris and severe weather.
- ULC S332: Canadian standards for burglary-resistant glazing materials and intruder delay.
- GSA / ISO 16933: Blast mitigation standards certifying fragment containment under explosive overpressure.
How Much Does Anti-Shatter Window Film Cost in BC?
The cost of professionally installed anti-shatter window film in Metro Vancouver and the Lower Mainland ranges from $12 – $22 per square foot, depending on film thickness, glass access, and whether structural wet-glaze attachment system (DOWSIL 995 silicone) is specified.
| Film Category | Film Thickness | Typical Application | Installed Price (per sq ft) |
|---|---|---|---|
| Standard Safety Film | 4 mil – 7 mil | Child safety, human impact, daycare glass | $12 – $18 |
| Heavy Anti-Shatter Security Film | 8 mil – 14 mil | Storefronts, ground-floor office windows | $16 – $22 |
| Solar Control + Security Combination | 6 mil – 8 mil | West-facing office glass needing heat + hold-together | $14 – $20 |
| Frosted Privacy Film | 2 mil | Interior office partitions & bathroom glass | $9 – $14 |
Where Should Anti-Shatter Window Film Be Installed in Commercial and Residential Buildings?
Anti-shatter film provides vital protection in high-risk zones across public and private properties in Metro Vancouver:
Commercial storefronts and entry doors benefit from 8-mil to 14-mil film to prevent smash-and-grab burglaries. In healthcare campuses such as Rosemary Heights Seniors Village in Surrey or Windermere Care Centre in Vancouver, 4-mil to 7-mil safety film protects residents and staff from accidental glass breakage. Special tourist facilities like Rocky Mountaineer utilize safety glazing to withstand external impact debris.
How Long Does Anti-Shatter Window Film Last in Metro Vancouver?
When installed indoors by certified technicians, high-grade LLumar or Vista anti-shatter window film carries a manufacturer warranty of 10 to 15 years for commercial buildings and a lifetime warranty for residential applications. Following installation, wet-applied safety film requires a cure time of 30 to 60 days for moisture to fully evaporate through the polyester matrix, ensuring maximum bond strength.
Related Articles
- Is Shatter Resistant Film the Same as Safety Film? What BC Property Owners Need to Know
- Security Film for Storefronts in Vancouver: What BC Business Owners Need to Know
- Glass Door Security Film for Government Buildings in BC: Security, Compliance, and Costs
- Does Glass Door Film Stop Intruders? Security Film for Glass Doors Explained
- Commercial Window Film ROI: What BC Property Managers Need to Know
Frequently Asked Questions
Does anti-shatter window film stop glass from breaking?
No, anti-shatter film does not make glass unbreakable. However, when glass fractures upon impact, the film keeps broken fragments bonded securely within the frame, preventing sharp shards from causing injuries or allowing easy entry.
What thickness of safety film is needed for anti-shatter protection?
Standard safety glazing uses 4-mil film for human impact protection. For intrusion deterrence and anti-shatter security on commercial storefronts or home entryways, an 8-mil to 14-mil film with structural silicone attachment is recommended.
How much does anti-shatter window film cost per square foot in BC?
In Metro Vancouver and the Lower Mainland, professionally installed anti-shatter security film costs $12 – $22 per square foot installed, depending on film grade, pane size, and frame attachment specs.
Is anti-shatter film suitable for Vancouver commercial storefronts?
Yes, clear anti-shatter security film is one of the most effective retrofits for commercial retail storefronts in Vancouver, protecting entry glass against forced entry while maintaining full exterior clarity.
How long is the cure time for installed security film?
Because security film is thicker than solar tint, complete curing takes 30 to 60 days in the Pacific Northwest climate. Small water pockets or slight haziness during this period are normal and clear as moisture evaporates.
